Einheitspreis: USD 175 - 190 / Square Meter
Min.Order
Einheitspreis
200 Square Meter
USD 175 / Square Meter
100 Square Meter
USD 180 / Square Meter
10 Square Meter
USD 190 / Square Meter
Marke: Prochema emi
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 55 - 62 / Piece/Pieces
Min.Order
Einheitspreis
200 Piece/Pieces
USD 55 / Piece/Pieces
50 Piece/Pieces
USD 60 / Piece/Pieces
5 Piece/Pieces
USD 62 / Piece/Pieces
Marke: Prochema emi
Verpakung: Rollen und Karton
Unterstützung über: 10000SHEET PER MONTH
Einheitspreis: USD 180 - 200 / Square Meter
Min.Order
Einheitspreis
500 Square Meter
USD 180 / Square Meter
200 Square Meter
USD 200 / Square Meter
Marke: Prochema
Verpakung: 1, bedeckter Schutzfilm auf der Oberfläche 2, gepackt mit Schaumstoffstoff auf der Rolle 3, gepackt mit Schotter an beiden Enden 4, gepackt mit Karton außerhalb der Rolle.
Unterstützung über: 100000 Square Meter/Square Meters per Month
Einheitspreis: USD 120 / Square Meter
Min.Order
Einheitspreis
5 Square Meter
USD 120 / Square Meter
Marke: Prochema
Verpakung: Kartonverpackung
Unterstützung über: 10000Square Meter/month
Einheitspreis: USD 195 - 235 / Square Meter
Min.Order
Einheitspreis
100 Square Meter
USD 195 / Square Meter
1 Square Meter
USD 235 / Square Meter
Marke: Prochema
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 195 - 235 / Square Meter
Min.Order
Einheitspreis
100 Square Meter
USD 195 / Square Meter
1 Square Meter
USD 235 / Square Meter
Marke: Prochema
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 108 / Square Meter
Min.Order
Einheitspreis
5 Square Meter
USD 108 / Square Meter
Marke: Prochema
Verpakung: Kartonverpackung
Unterstützung über: 10000Square Meter/month
Einheitspreis: USD 185 / Square Meter
Min.Order
Einheitspreis
200 Square Meter
USD 185 / Square Meter
Marke: Prochema EMI-Film.
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 185 / Square Meter
Min.Order
Einheitspreis
20 Square Meter
USD 185 / Square Meter
Marke: Prochema EMI-Film.
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 108 / Square Meter
Min.Order
Einheitspreis
5 Square Meter
USD 108 / Square Meter
Marke: prochema
Verpakung: Kartonverpackung
Unterstützung über: 10000Square Meter/month
Einheitspreis: USD 108 / Square Meter
Min.Order
Einheitspreis
5 Square Meter
USD 108 / Square Meter
Marke: prochema
Verpakung: Kartonverpackung
Unterstützung über: 10000Square Meter/month
Einheitspreis: USD 108 / Square Meter
Min.Order
Einheitspreis
5 Square Meter
USD 108 / Square Meter
Marke: prochema
Verpakung: Kartonverpackung
Unterstützung über: 10000Square Meter/month
Einheitspreis: USD 108 / Square Meter
Min.Order
Einheitspreis
5 Square Meter
USD 108 / Square Meter
Marke: prochema
Verpakung: Kartonverpackung
Unterstützung über: 10000Square Meter/month
Einheitspreis: USD 108 / Square Meter
Min.Order
Einheitspreis
5 Square Meter
USD 108 / Square Meter
Marke: prochema
Verpakung: Kartonverpackung
Unterstützung über: 10000Square Meter/month
Einheitspreis: USD 108 / Square Meter
Min.Order
Einheitspreis
5 Square Meter
USD 108 / Square Meter
Marke: prochema
Verpakung: Kartonverpackung
Unterstützung über: 10000Square Meter/month
Einheitspreis: USD 3.5 / Square Meter
Min.Order
Einheitspreis
4 Square Meter
USD 3.5 / Square Meter
Marke: prochema
Verpakung: Kartonverpackung
Unterstützung über: 10000Square Meter/month
Einheitspreis: USD 3.5 / Square Meter
Min.Order
Einheitspreis
4 Square Meter
USD 3.5 / Square Meter
Marke: prochema
Verpakung: Kartonverpackung
Unterstützung über: 10000Square Meter/month
Einheitspreis: USD 235 / Square Meter
Min.Order
Einheitspreis
200 Square Meter
USD 235 / Square Meter
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 235 / Square Meter
Min.Order
Einheitspreis
200 Square Meter
USD 235 / Square Meter
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 235 / Square Meter
Min.Order
Einheitspreis
200 Square Meter
USD 235 / Square Meter
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 235 / Square Meter
Min.Order
Einheitspreis
200 Square Meter
USD 235 / Square Meter
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 235 / Square Meter
Min.Order
Einheitspreis
200 Square Meter
USD 235 / Square Meter
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 235 / Square Meter
Min.Order
Einheitspreis
200 Square Meter
USD 235 / Square Meter
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Einheitspreis: USD 235 / Square Meter
Min.Order
Einheitspreis
200 Square Meter
USD 235 / Square Meter
Verpakung: Karton
Unterstützung über: 30000Sqm/Month
Wir sind in einer führenden Position in der Innovation und Entwicklung von Display- und Fenster -EMI/RFI -Abschirmlösungen. Mit dem Design -Update der Anzeigegröße und -definition hat die neue Generation von Nano -Netzfilm eine höhere Transparenz und einen stärkeren Abschirmeffekt. Das innovative Prinzip des Nano-Alloy-Draht-Leitdruckprozesses, die Einführung der Ätzgittertechnologie und den optimierten Anzeigemodus, wodurch unser Mesh-Film die erste Wahl für Fenster- und Touchscreen-Abschirmungen ist.
Micro Metal Mesh Pet Film enthält eine Auswahl an 85 OPI, 100 OPI und 150 OPI für verschiedene Anwendungen.
EMI -Schirmfilm
Item Number |
Structure |
Substrate thickness |
Wire width |
VLT |
Haze |
Av.EMI |
Size |
OCA Backing |
Remarks |
WSLPM250B (250 opi) Irregular Mesh |
PET+alloyed metal |
125UM |
9um |
≥84% |
≤2% |
43.9DB |
0.8*1.8m/sheet(blackened)
0.55*0.43m/sheet(super clear)
|
Optional |
suitable for electromagnetic shielding of military products and civil use. The product has high transmittance and high-definition resolution, and the scenery is not distorted in any environment. Independent intellectual property rights, national military standard testing. It has excellent functions such as converting diffracted waves into internal energy and non-reflection of signals. |
MT150 (150 opi) |
PET+Ag Ni alloyed+rare earth |
125UM |
17UM |
≥76% |
≤5% |
53.8db |
1.5*300m slitting service available |
With OCA
|
Suitable for equipment window shielding, such as RFID vending machines, medical equipment windows, etc. Confidentiality room and conference room of organs and institutions. The electromagnetic radiation shielding of base stations or high-voltage lines is currently the most efficient product of transparent film in China. |
DNPM150B (150 opi) |
PET+alloyed blackened (metal side) |
150UM |
15UM |
≥76% |
≤25% |
50.5db |
0.64*1.13m/sheet
|
With OCA |
suitable for LCD screen shielding in special occasions. It also has anti-glare and anti-oxidation functions. Most LCD screens do not need to be adjusted in angle and have no interference fringes. High-efficiency shielding material for LCD screen |

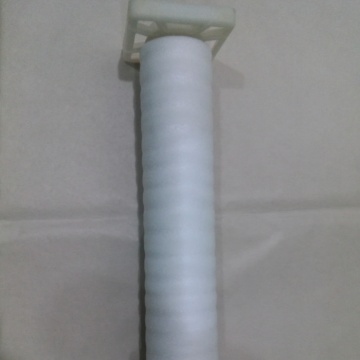

WSLDM85B(85 opi) |
PET+Cu Ni alloyed(Surface 3H hardcoated) |
125UM |
21UM |
≥80% |
≤2% |
42.6db |
max width 1.5m |
Optional |
Suitable for observation window shielding, shelters, buildings. Take into account the screen effect and transmittance. With anti-scratch surface |
DNPM85B (85 opi) |
PET+alloyed blackened (non metal side) |
125UM |
15UM |
≥80% |
≤20% |
41.9db |
0.76*1.3m/sheet die cut service available |
With OCA |
It is suitable for LCD screen shielding in special occasions, and has anti-glare function at the same time, and most LCD screens do not need to be adjusted. |
DNPM100B(100 opi) |
PET+alloyed blackened (metal side) |
125UM |
15UM |
≥80% |
≤25% |
48.9db |
0.53*0.93m/sheet die cut service available |
With OCA
|
It is suitable for LCD screen shielding in special occasions, and has anti-glare function at the same time. Most LCD displays do not need to adjust the angle and have no interference fringes |
Für weitere Informationen wenden Sie sich bitte an Ihre Anforderungen.
